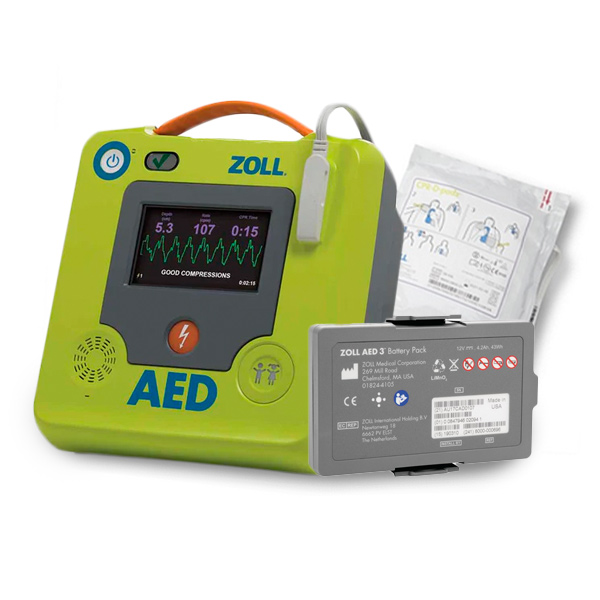

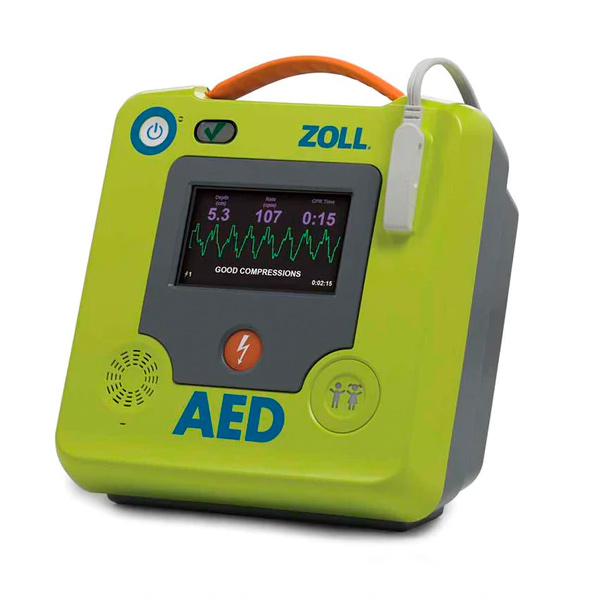

Zoll AED 3 BLS 8513-001103-01 – Zoll – New

Protocol: Semi-automatic
Waveform: ZOLL Rectilinear Biphasic™
Defibrillator Charge Hold Time: 30 seconds
Energy Selection: Factory preprogrammed selection (Adult: 120 J, 150 J, 200 J; Child: 50 J, 70 J, 85 J). User configurable.
Patient Safety: Every patient connection is electrically isolated.
Charge Time: Less than 10 seconds with a new battery
Pre-shock Pause: With RapidShock Analysis less than 5 seconds (semi-automatic) with new battery
Self-test: User-configurable automatic self-test every day or every seven days.
Default: Every seven days. Monthly full-energy test (200 J).
Automatic Self-Test Checks: Battery capacity, status, and expiration; electrode connection and expiration; ECG and charge/discharge circuits; microprocessor hardware and software; CPR circuitry and pads sensor; audio circuitry
CPR Metronome Rate: Constant 105 (+/- 2) CPM
Depth Measurement: 1.9 cm to 10.2 cm; 0.75 in to 4 in
Defibrillation Advisory: Evaluate electrode connection and patient ECG to determine if defibrillation is required
Shockable Rhythms: Ventricular fibrillation with average amplitude >100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults and 200 BPM for pediatrics. Refer to the ZOLL AED 3 Administrator’s Guide for ECG analysis algorithm sensitivity and specificity.
Patient Impedance Measurement Range: 10 ohms to 300 ohms
Defibrillator: Protected ECG circuitry
Display Format: High-resolution LCD with capacitive touch panel
Display Screen Size: 5.39 cm x 9.5 cm; 2.12 in x 3.74 in
Display Sweep Speed: 25 mm/sec
Display Viewing Speed: 3.84 seconds
Data Recording and Storage: User-configurable for 1 or 2 clinical events for 120 minutes for each event. Includes ECG, impedance measurements, device prompts, and CPR data. With voice recording enabled, the AED could still store the same data with synchronous audio for 60 minutes for each event.
Data Recovery: Controlled by touchscreen, uploaded to a USB memory stick or RescueNet CaseReview over a Wi-Fi network
Device Size: (H x W x D) 5.0 in x 9.3 in x 9.7 in; 12.7 cm x 23.6 cm x 24.7 cm
Weight: 5.5 lbs; 2.5 kg
Power: Lithium manganese dioxide battery pack
Wi-Fi Enabled Devices: Wireless 802.11 a/b/g/n; Security Protocols, WPA1, WPA 2, WPA Personal, WPA Enterprise; Internal Clock Synchronization: Coordinated Universal Time (UTC) synchronization occurs when communicating with the ZOLL Online server.
Port: USB 2.0
Audio Recording: User-configurable on/ off (default=off)
Device Classification: Internally powered per EN 60601-1 and Class III
Design Standards: This device meets applicable requirements of EN 60601-1, EN 60601-1-11, IEC 60601-2-4
Environmental Operating Temperature: 0° to 50°C; 32° to 122°F
Storage Temperature: -30° to 70°C; -22° to 158°F
Humidity: 10% to 95% relative humidity, non-condensing
Vibration: IEC 60068-2-64, Random, Spectrum A.4, Table A.8, Cat. 3b; RTCA/DO-160G, Fixed Wing Aircraft, Section 8.6, Test Cat. H, Aircraft Zone 1 and 2 ; EN1789, Sweep per EN 60068-2-6 Test Fc
Shock: IEC 60068-2-27; 100G
Altitude: -381 m to 4,573 m; -1,250 to 15,000 ft
Particle and Water Ingress: IP55
Drop Test: 1 meter; 3.28 ft

Battery

Battery Capacity: A typical new battery running at an ambient temperature of 68° F to 77° F (+20° C to +25° C) provides 140 defibrillator discharges at max energy (200 joules) or 6 hours of constant monitoring (with 2-minute CPR periods). Note: CPR periods shorter than 2 minutes can decrease the operating time obtained from a new battery.
Type: Disposable, sealed lithium manganese dioxide
Battery Standby Life (once installed): 5 years with weekly self-test*. Battery end of life indicated by blank status window
(typical remaining shocks: 9).
Battery Shelf Life: Store for up to 2 years at 23°C (77°F) before installing in ZOLL AED 3 BLS to maintain the battery life detailed above.
Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 10% to 95% (non-condensing)
Weight: 317.5 grams; 0.7 lbs
Size: (H x W x D) 27.75 mm x 133 mm x 88 mm; 1.0 in x 5.16 in x 3.5 in
Nominal Voltage: 12 volts

CPR-D-padz

Shelf Life: 5 years
Conductive Gel: Polymer Hydrogel
Conductive Element: Tin
Packaging: Multilayer foil laminate pouch
Impedance Class: Low
Cable Length: 48 in (1.2 m)
Sternum: Length: 6.1 in (15.5 cm); Width: 5.0 in (12.7 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Apex: Length: 6.1 in (15.5 cm); Width: 5.6 in (14.1 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Complete Assembly: Folded length: 7.6 in (19.4 cm); Folded width: 7.0 in (17.8 cm); Folded height: 1.5 in (3.8 cm)
Design Standards: Meets applicable requirements of ANSI/AAMI/ISO DF-39-1993
